Electric Cylinder
Basics
1. What's an Electric Cylinder?
An electric cylinder is an electromechanical device used to produce linear motion (a straight-line forward or backward movement). Essentially, it's a type of actuator or drive that operates electrically to move objects or parts in a straight line.
The basic operation of an electric cylinder involves converting rotational motion into linear motion. This is typically achieved using a screw drive mechanism or a rack-and-pinion mechanism. When the electric motor is activated, it turns the screw or the pinion, causing the cylinder rod to move forward or backward.

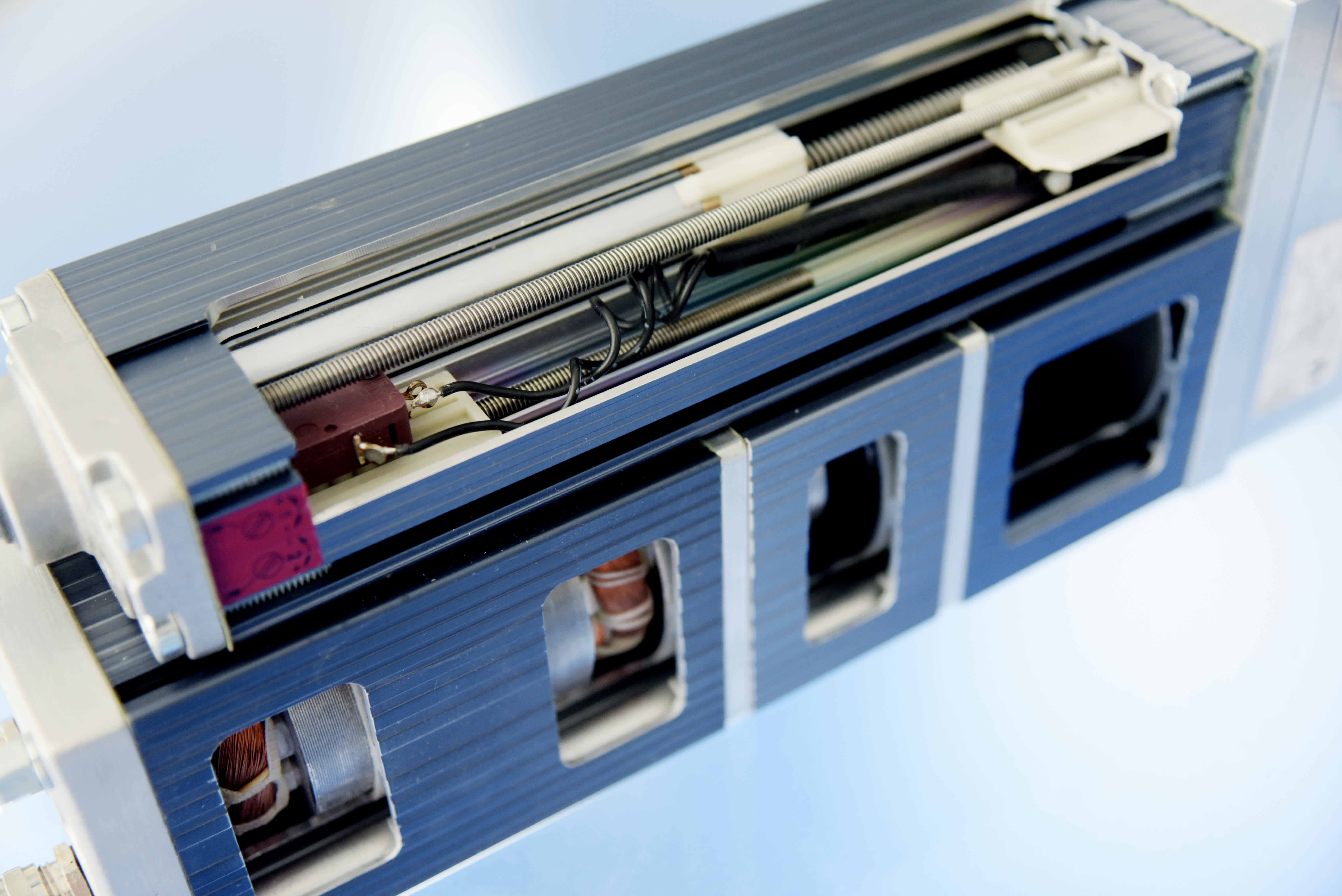

Electric cylinders are often characterized by their aluminum profiles. These profiles allow for an easy attachment of mounting plates, limit switches, and reed sensors. The modular design of electric cylinders makes them versatile for various applications.
2. Sizes and options
The electric linear actuators (EZ) are available in three different sizes and can exert forces ranging from 3000N to 40,000N. The types:
- EZ10
- EZ20
- EZ30
can be customized according to an existing modular system. To vary the stroke speed and stroke force, a planetary gearbox is used.
3. What versions are available?
Essentially, there are two main configurations: coaxial and parallel. This refers to the orientation of the motor. In the parallel configuration, the motor is mounted parallel to the spindle axis. The advantage of this is that it saves space along the axis. However, the redirection is more costly due to additional components needed for the redirection. If a particularly narrow solution is sought to fit into an existing hollow profile, the coaxial configuration offers a slimmer option to optimize space utilization.
Electric cylinder - coaxial version

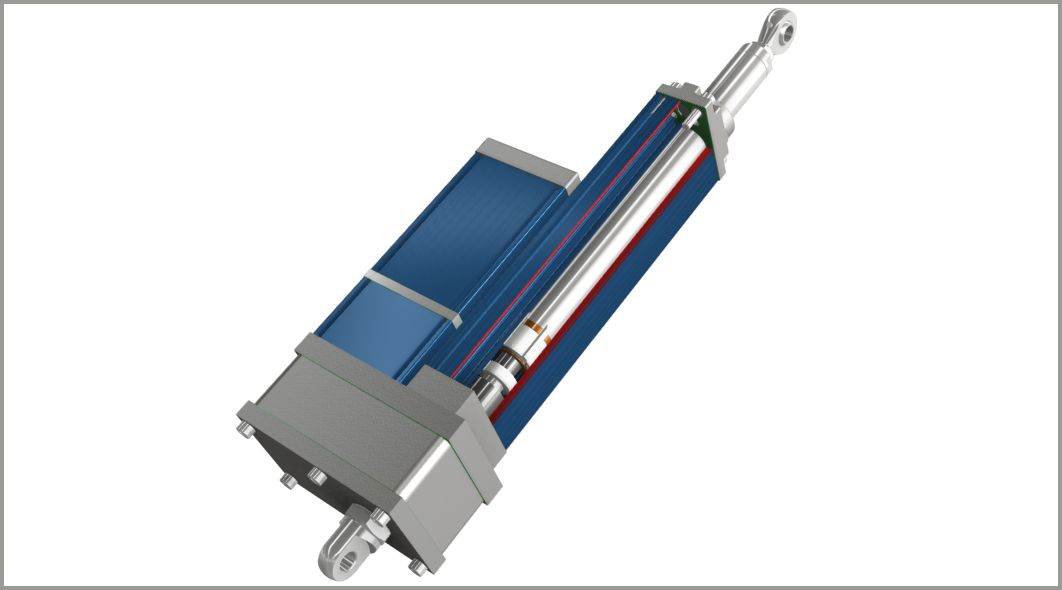

Electric cylinder - parallel version
4. When should an Electric Cylinder be chosen?
An electric lift cylinder offers the opportunity to configure a ready-made solution that includes all control options.
As a user, you no longer need to worry about external limit switches, position sensors, or external three-phase motors, as you receive a compact unit. The aluminum profile ensures that all sensitive components are protected (IP54 rating) and are lubricated for life—making it low-maintenance. Additionally, the electric lift cylinder covers a wide range of speeds (1 mm/s to 230 mm/s), providing a broad spectrum of solutions.
5. When is an Electric Cylinder EZ a poor choice?
The electric cylinder is not suitable for outdoor use or applications with high moisture exposure. Additionally, the initial investment can sometimes be a higher budget burden—at least compared to worm drive systems. If you don't require a complete solution or have enough space for bulky components, there are many alternatives among lifting drives that can also achieve the desired result.
6. Applications of Electric Cylinders
Electric cylinders are used in a variety of applications where precise and repeatable linear movements are required. Some examples of applications include:
Industrial robotics
Electric cylinders are used to control the movement of robotic grippers, tools, and other components.
Automatization
In manufacturing lines and automated systems, electric cylinders are used to position and move workpieces.
Medical technology
Electric cylinders are used in medical devices such as patient beds, operating tables, and diagnostic equipment.
Automotive engineering
In some vehicles, electric cylinders are used to adjust seats or open and close roofs.
Farming
Electric cylinders can be used in agricultural machinery to perform various functions, such as lifting mowers or adjusting planting equipment.
7. Pro and Cons
Cons
✘ Cost: Electric cylinders can initially be more expensive than some other actuators, such as pneumatic cylinders.
✘ Limited Load Capacity: Electric cylinders typically have a lower load capacity compared to hydraulic systems, making them less suitable for heavy loads.
✘ Power Supply Required: Since electric cylinders are electrically powered, a reliable power supply is necessary. Power outages can cause issues.
✘ Limited Speed: In some cases, electric cylinders may reach their limits at very high speeds.
Pros
✔ Precise Control: Electric cylinders offer precise control of linear movement, making them ideal for applications where accuracy and positioning are crucial.
✔ Repeatability: The movements of an electric cylinder can be easily repeated, which is advantageous in automated processes and production lines.
✔ Easy Integration: Electric cylinders integrate well into automation systems and can be easily connected with other electronic controls.
✔ Energy Efficiency: Compared to hydraulic systems, electric cylinders can be more energy-efficient, as they consume power only when in operation.
✔ Environmentally Friendly: Electric cylinders do not produce environmentally harmful waste like hydraulic oil or compressed air.
✔ Low Maintenance: They generally require less maintenance than hydraulic or pneumatic systems, as there are no fluids or compressed air to leak or replace.
FAQs about Electric Cylinders
What's an electric cylinder?
An electric cylinder is an electromechanical actuator that operates linearly and is powered by electrical energy to generate motion.
What an Electric Cylinder is and where it is used - GROB chevron_rightHow does an electric cylinder work?
An electric cylinder converts electrical energy into linear motion. This is achieved through a motor driving a spindle, which in turn moves a load.
What are the advantages of an electric cylinder compared to other actuators?
Electric cylinders offer precise positioning, easy control, high efficiency, low maintenance requirements, and a wide range of applications.
What are typical features of a high-quality electric cylinder?
Features include high load capacity, precise positioning, robust construction, efficient energy conversion, and a variety of configuration options.
What applications are suitable for electric cylinders?
Electric cylinders are used in various industries, from industrial automation systems to medical and laboratory equipment, as well as in furniture and vehicles.
