1. What is Linear Drive Technology?
Linear drive technology refers to systems and technologies that create movement along a straight line. Unlike rotary drives, which produce circular motion, linear drives convert energy directly into linear motion. This type of movement is essential in many machines and devices that require precise and controlled movements.

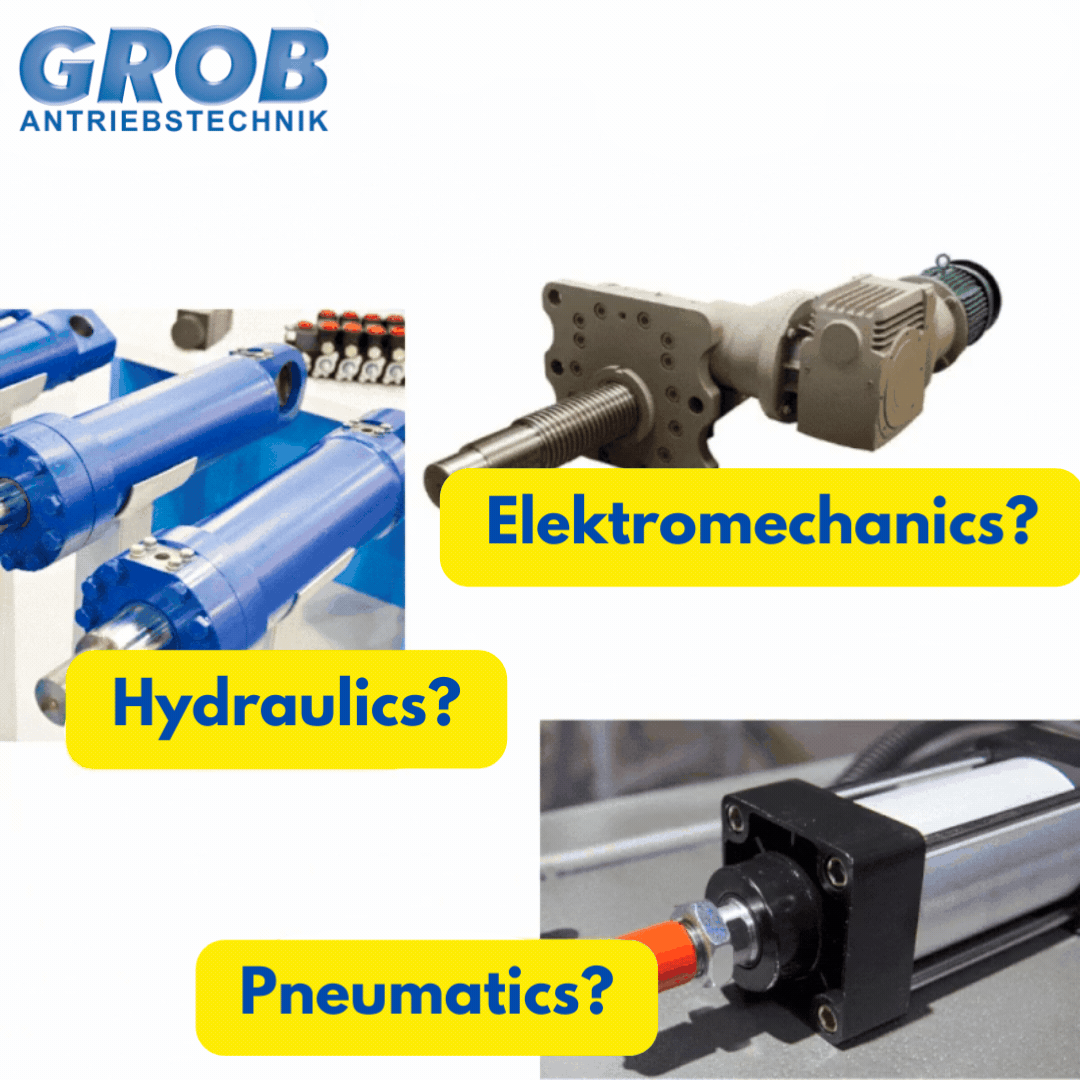

There are three main types of drive technologies:
- Hydraulics
- Pneumatics
- Electromechanics
1. Hydraulic drives
Hydraulic drives are a widely used form of drive technology. They operate based on fluid pressure, typically using hydraulic oil to generate and transmit mechanical energy. The core component of a hydraulic drive is the hydraulic fluid, often referred to as hydraulic oil. This oil circulates within a closed system and plays a crucial role in energy transfer. The process starts with a hydraulic pump, driven by a power source such as an electric motor or an internal combustion engine. The pump generates pressure by drawing hydraulic fluid from a tank and pumping it under pressure into the hydraulic system.
Active principle of a hydraulic cylinder
The generated pressure is utilized in hydraulic cylinders. A hydraulic cylinder consists of a cylinder barrel and a piston that moves within it. The piston is attached to a rod or piston rod. The pressure of the hydraulic fluid on the piston produces linear motion of the piston within the cylinder.
The linear motion of the piston in the cylinder is transferred to a load attached to the piston rod. Depending on the application, this could involve lifting a weight, moving a tool, or shifting another mechanical system. To complete the process, the hydraulic fluid is returned from the cylinder to the tank, where it is pumped again by the pump. This closed-loop system allows for continuous movement of the hydraulic fluid and thus repetitive operation of the hydraulic drive system.
Here's a brief overview of the advantages and disadvantages of hydraulic drives to help you assess whether this drive system is suitable for your needs:
Cons
✘ Oil Requirement: Hydraulic systems require hydraulic fluid (oil or other hydraulic fluids), necessitating regular maintenance and monitoring. Leaks can cause environmental issues.
✘ Complexity: Hydraulic systems can be complex due to their intricate structure and numerous components, such as pumps, valves, and hoses, requiring expertise for installation and maintenance.
✘ Noise Level: Hydraulic systems can be noisy due to high-pressure oil and moving parts. This can be disruptive in certain environments.
✘ Energy Efficiency: Compared to some other drive systems, such as electric drives, hydraulic systems can be less energy-efficient, leading to higher energy consumption.
✘ Controllability: Controlling multiple cylinders simultaneously in a system can be challenging, as it requires regulating different pressures, leading to high control effort."
Pros
✔ High Performance and Power: Hydraulic drives offer high performance and are capable of generating large forces. This makes them ideal for applications where heavy loads need to be moved at high speeds.
✔ Robust and Durable: Hydraulic components are often very robust and durable. They can withstand adverse environmental conditions and have a long lifespan when properly maintained. Shocks and vibrations can also be better absorbed by the hydraulic fluid.
✔ Variable Operating Pressure: The operating pressures in hydraulic systems can be easily varied to meet the application's requirements. This allows for flexible adaptation to different tasks.
2. Pneumatic drives
Pneumatic drives use compressed air as an energy source to generate mechanical work and control linear or rotary movements. The process begins with a compressed air source, typically an air compressor. This compressor compresses the ambient air, increasing the pressure to produce compressed air. This compressed air is stored in an air tank to maintain a constant pressure for the pneumatic system.
Pneumatic drives have valves and controls to manage the flow of compressed air. These valves open and close to regulate the air pressure in the working cylinders and produce the desired movements. The control can be manual, electric, or electronic, depending on the application and precision requirements. The compressed air flows into a pneumatic cylinder, which contains a cylindrical housing with a piston inside. When air flows into the cylinder, the piston is moved in a specific direction.
Pneumatic cylinder
The movement of the piston in the cylinder can be linear or rotary, depending on the cylinder's design and application. When compressed air is directed to one side of the piston, it moves in the opposite direction, working against the pressure.
The piston's movement in the cylinder is transferred to a load attached to the piston rod or the cylinder housing. This allows for mechanical work to be performed, such as lifting loads, moving tools, or actuating valves in industrial applications. The exhausted air is released from the cylinder, allowing the piston to return. The process can be repeated by directing the compressed air to the other side of the cylinder to reverse the movement
Cons
✘ Lower Precision: Compared to electric or hydraulic drives, pneumatic drives often offer lower precision. They can struggle to control very accurate positions or movements.
✘ Limited Power: Pneumatic systems have limited capability in transmitting forces and torque compared to hydraulic or electric systems. They may not be suitable for applications with heavy loads.
✘ Air Compressor Required: Pneumatic drives require an air compressor to generate compressed air. This can involve additional costs and space requirements.
✘ Energy Efficiency: Pneumatic systems can be less energy-efficient than electric drives, especially when the demand for compressed air is high.
✘ Noise Level: Pneumatic systems can be noisy, especially when compressed air is rapidly vented. This can be disruptive in some environments.
Pros
✔ Easy Handling: Pneumatic drives are easy to install and operate. They do not require complex control technology and are easy to maintain.
✔ Cost-Effective: Pneumatic components are often more cost-effective than comparable electric or hydraulic systems. Acquisition and installation are generally affordable.
✔ Rapid Movement: Pneumatic drives can generate very fast movements, making them ideal for applications requiring high speed, such as in the packaging industry.
✔ Clean Energy Source: Pneumatic drives use compressed air as an energy source, meaning they do not require harmful or environmentally hazardous fluids like hydraulic oils.
✔ Explosion-Proof: Pneumatic systems can be used in explosive environments, such as in the chemical industry, because they do not produce sparks.

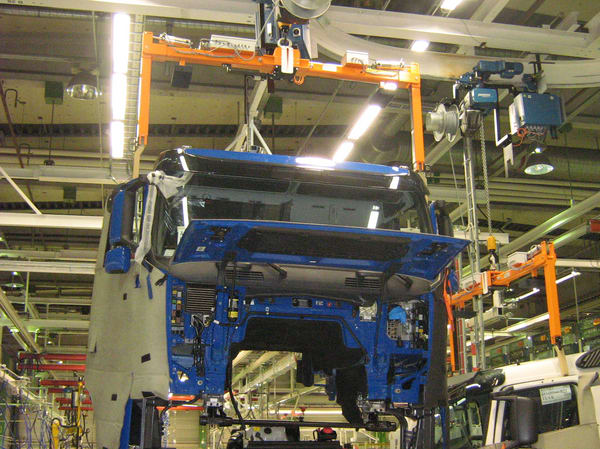

3. Electromechanical drives
Electromechanical drives convert electrical energy into mechanical motion. They are used in a variety of applications, from controlling windows and doors to precision movement in industrial robots. The process begins with the supply of electrical energy, usually in the form of alternating current (AC) or direct current (DC), depending on the application and the specific requirements of the drive system. The generated electromagnetic forces move mechanical components such as coils, shafts, wheels, or linear rails, depending on the type of electromechanical drive. This results in linear or rotary motions, depending on the design and application.
Electromechanical drives
The mechanical movement is transferred to a load attached to the moving parts of the drive mechanism. This allows for mechanical work to be performed, such as lifting loads, moving conveyor belts, or controlling valves. In some applications, a feedback system, such as an encoder or a sensor, monitors the position or speed of the moving parts and returns this information to the control system. This allows the movement to be precisely controlled and regulated.
Cons
✘ Cost: The acquisition and installation costs for electromechanical drives can be higher than for pneumatic systems, especially when high precision and performance are required.
✘ Complexity: Electromechanical systems can be more complex in terms of design, installation, and control, potentially requiring specialized knowledge.
✘ Limited Load Capacity: Electromechanical drives have limited load capacity compared to hydraulic systems, particularly in applications with heavy loads.
✘ Dependence on Power Supply: Electromechanical drives rely on a reliable power supply. Power outages can impair their functionality.
Pros
✔ Precision and Repeatability: Electromechanical drives offer high precision and repeatability in motion control. This makes them ideal for applications requiring exact positions and movements, such as robotics and CNC machining.
✔ Variable Speed and Position: Electromechanical drives allow easy control of speed and position by precisely converting electrical signals. This provides flexibility for various applications.

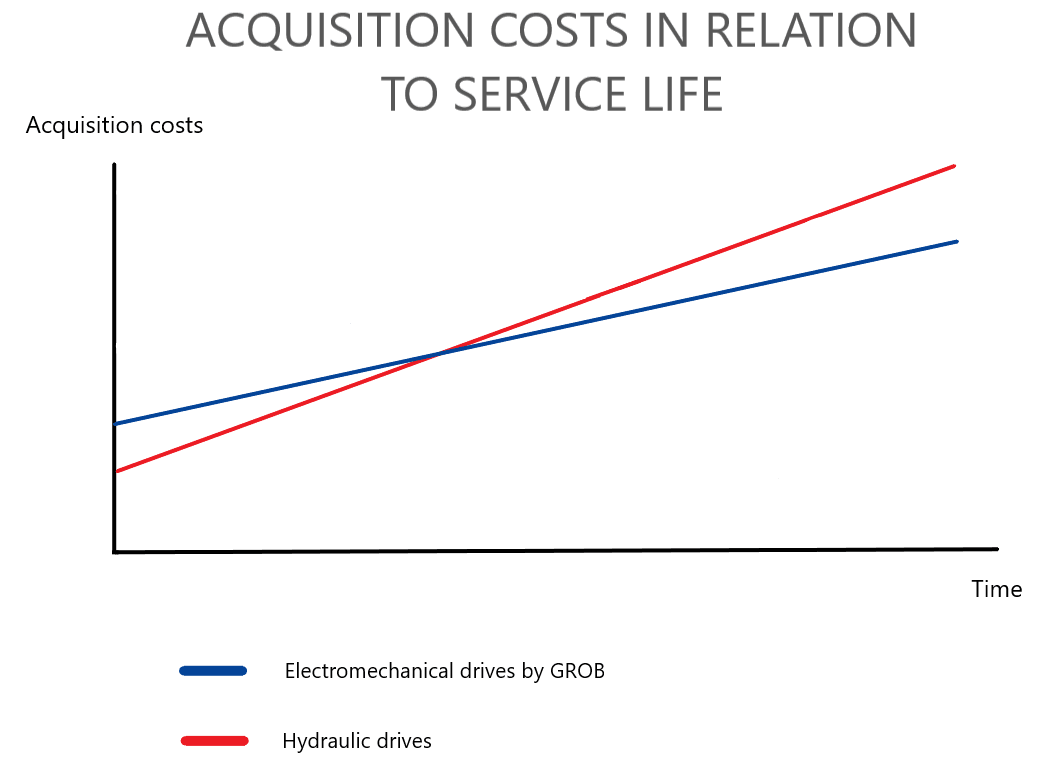

✔ Efficiency: Electromechanical systems are generally more energy-efficient than pneumatic or hydraulic systems. They do not waste energy through leaks or pressure losses.
✔ Longevity and Low Maintenance: Electromechanical drives often have a long lifespan and require less maintenance compared to hydraulic or pneumatic systems. There are no fluids that can leak.
✔ Environmentally Friendly: Electromechanical drives do not produce harmful emissions or fluids, making them environmentally friendly.
✔ Simple System Integration: The mechanical coupling of multiple drives allows for easy synchronization without increasing control complexity.
