Compact and quiet Linear Actuators open and close all types of window openings

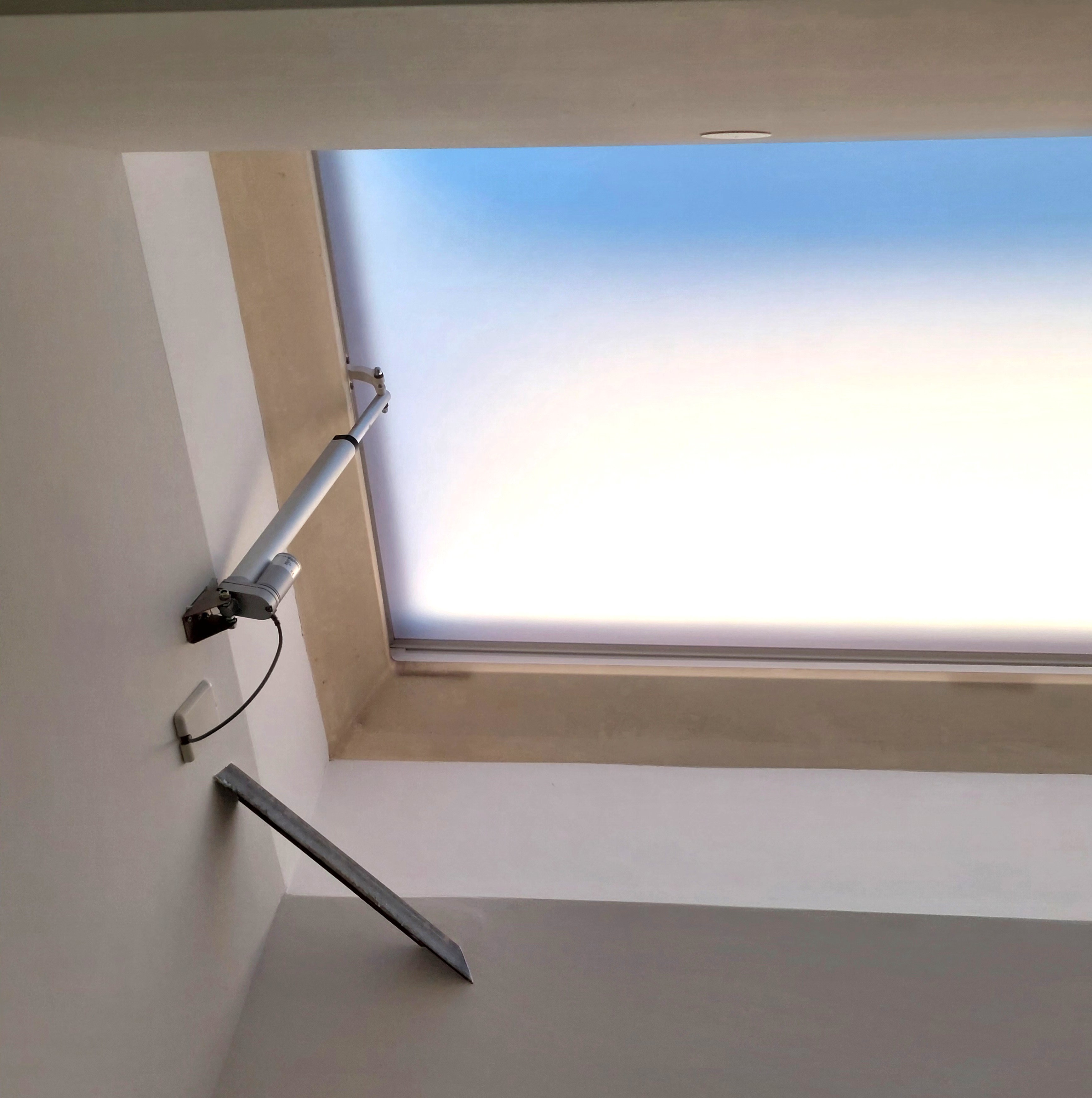

We speak from our own experience. In our offices, we use our Linear Actuators in roof windows that we can't access.

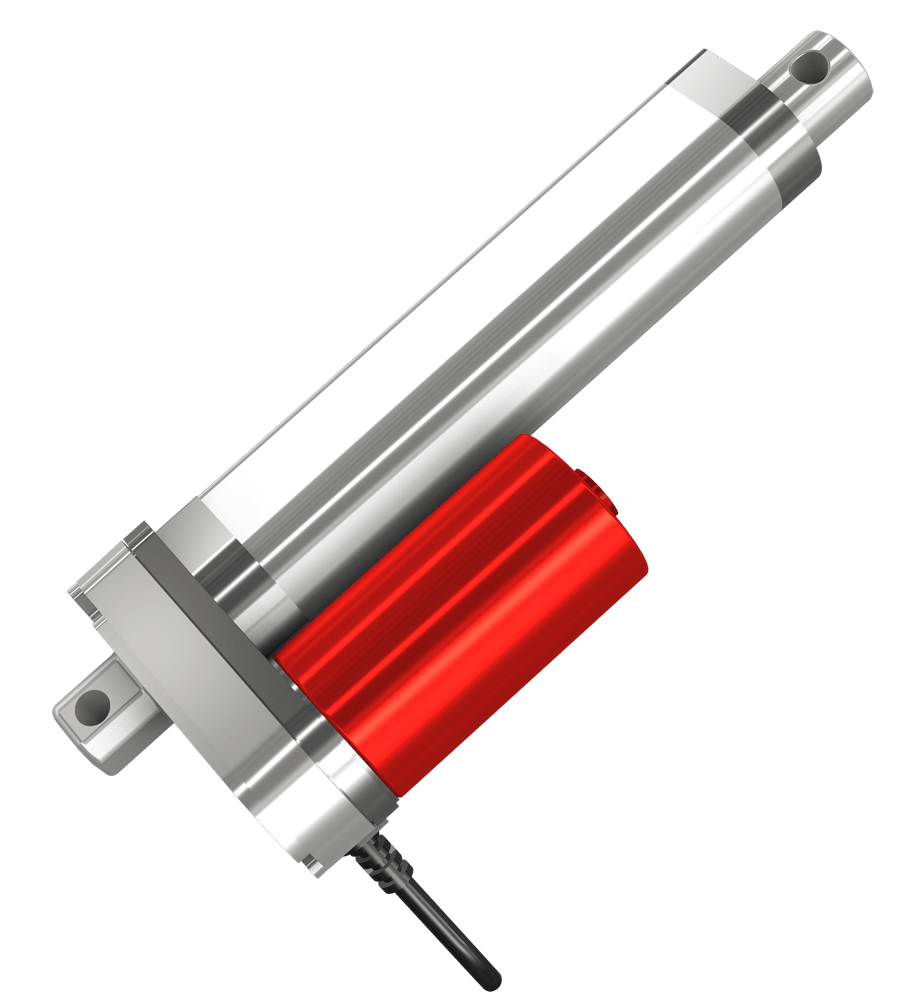

Linear Actuator 7-LD3Q
☑️ 700N
☑️ with limit switch
☑️ 24V/DC
☑️ Gear ratio 30:1
☑️ Stroke 300mm
☑️ Protection class IP65
☑️ Quiet operation
✔ Simple compact solution
✔Easy control with manual operation
✔Alternative applications (bed adjustment, flap adjustment for smoke and heat extraction systems)
A Linear Actuator converts rotational motion into linear motion. It is powered by electric motors. However, linear movements can also be achieved through hydraulic or pneumatic actuators. Electric Linear Actuators are used for more precise movements.
Typically, it's an electric linear drive. It consists of three main components: spindle, motor, and gearbox. When a signal is received, the motor converts electrical energy into mechanical energy, moving the gears of the gearbox. These rotate the spindle, causing the spindle nut to move outward or inward.
Linear Actuators are ubiquitous: in homes, offices, hospitals, factories, agricultural settings, and many other places. In hospitals and medical centers, you'll find Linear Actuators used to adjust patient tables, hospital beds, or operating tables. Other applications are in industry, agriculture, construction, and industrial automation.
The IP66 classification indicates that the actuator is dust-tight and protected against strong jets of water. Ideal for applications requiring robust protection.
Actuators with IP66 are suitable for harsh environments such as industrial settings, outdoor use, or applications requiring water cleaning.
The IP66 protection class significantly reduces the ingress of dust and water, minimizing maintenance requirements. However, regular inspection is advisable.
There are mechanical, electromechanical, direct electric Linear Actuators (linear motors), as well as hydraulic and pneumatic linear actuators. We utilize electromechanical actuators in our drive solutions.
Which types of linear drive technology there are - GROB GmbH chevron_rightElectric linear drives use electrical energy for motion, whereas hydraulic and pneumatic drives use fluids or gases. Electric drives are more precise and efficient.
For the spindle end, the standard range offers options including threaded end, articulated head, ball joint head, flange plate, bearing flange plate, and pin. You can find corresponding dimensions in the General Catalog 2023 (grob-antriebstechnik.de)
In this introductory article, you'll dive into the basics of Linear Actuators and learn how these efficient powerhouses shine in the world of electromechanical drive technology. Discover what makes a Linear Actuator special and how it can help you overcome your challenges.
